QB 10-40 hp High Pressure Boosters

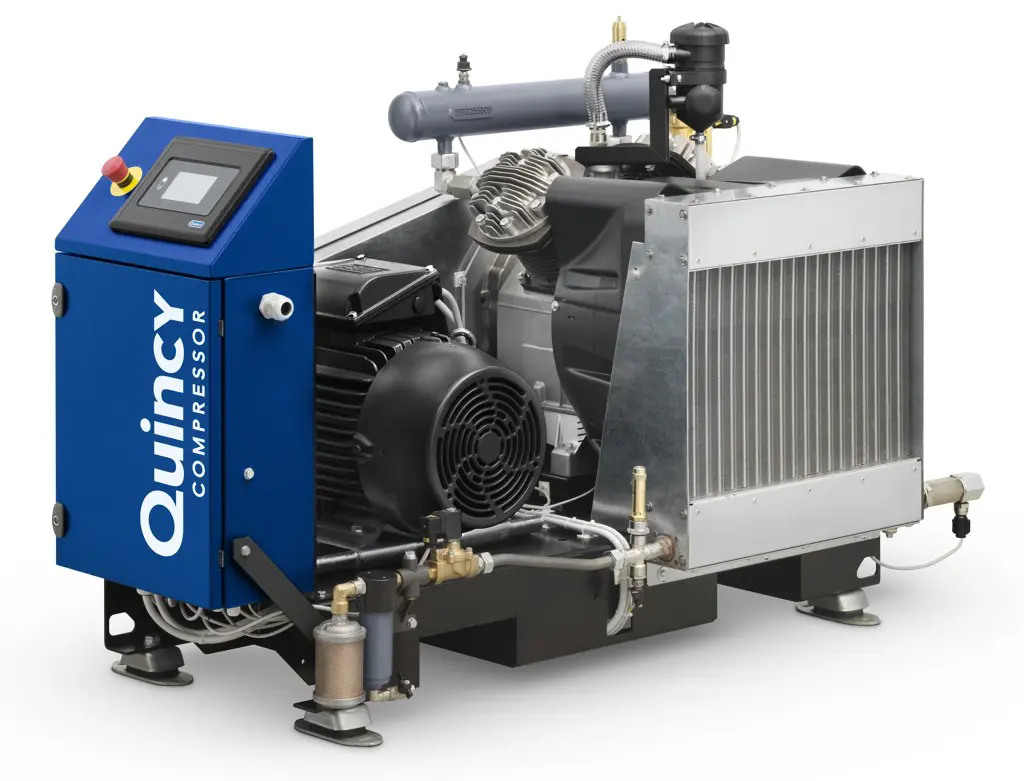

Designed for the demands of high-pressure air and nitrogen applications, Quincy’s QB Series single-stage high pressure booster offers a premium efficient and reliable solution. The QB boosters are featured in both 360 and 580 psi options and power ranging from 10-40 hp. Offered in either a standard configuration or full-feature configuration which includes an aftercooler and unit-mounted controller. Custom reed valve design enhances performance and minimizes power consumption. The QB Boosters provide the range and versatility required for the most critical high-pressure applications.
- 10-40 hp
- 360 or 580 psi
- Full Feature available with aftercooler and Q-control
At a Glance
- 360 or 580 psi selection
- Standard or Full Feature packages
- Long maintenance intervals
- Easy access to service points
Up Close
- 10-40 hp
- Available with Q-Control Touch
- Custom reed valve design
- 100% duty cycle rated
Key Features of the QB 10-40 High Pressure Boosters
Designed for high pressure and nitrogen applications. Quincy’s QB Series single-stage high pressure booster offers a premium efficient and reliable solution. The QB boosters provide the range and versatility required for the most critical high pressure applications.
Our high pressure booster has many innovative features, including:
- 100% duty cycle
- Suitable for air and nitrogen applications
- 25-bar and 40-bar model for the best performance
- Q-Control Panel mounted separately
Common Applications of High-Pressure Boosters
Our versatile high pressure boosters are suitable professional use, making them valuable resources in countless industries:
- Polyethylene terephthalate (PET) bottle manufacturing
- Industrial pressure testing
- Oil and gas production & transportation
- Metal fabrication (e.g. laser cutting)
- Nitrogen and air boosting
Quincy QB 10-40 Performance
Quincy QB Model Information
| Model | Power | Max. inlet pressure | Max. discharge pressure | Free Air Delivery | Weight ST | Weight FF | ||||
| HP | kW | bar | psi | bar | psi | l/s | CFM | lbs | lbs | |

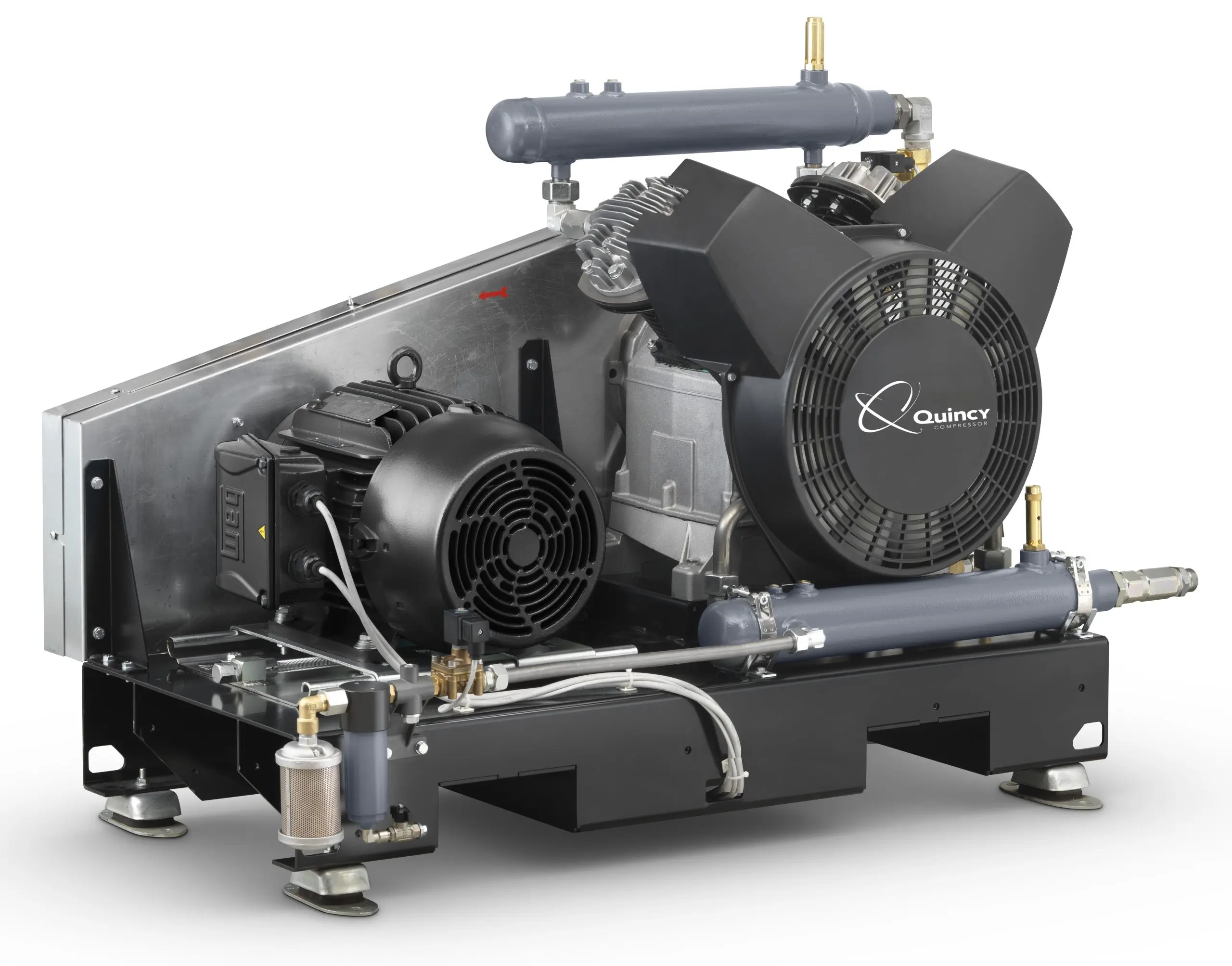

| QB 10-580 | 10 | 7.5 | 10 | 145 | 40 | 580 | 30.0 | 63.6 | 683 | 805 |
| QB 10-360 | 5 | 73 | 25 | 363 | 28.5 | 60.4 | ||||
| QB 15-580 | 15 | 11 | 10 | 145 | 40 | 580 | 48.5 | 102.8 | 772 | 893 |
| QB 15-360 | 5 | 73 | 25 | 363 | 35.3 | 74.8 | ||||
| QB 20-580 | 20 | 15 | 10 | 145 | 40 | 580 | 63.8 | 135.3 | N/A | 1003 |
| QB 20-360 | 5 | 73 | 25 | 363 | 49.8 | 105.5 | ||||
| QB 25-580 | 25 | 18.5 | 10 | 145 | 40 | 580 | 77.5 | 164.2 | N/A | 1069 |
| QB 25-360 | 5 | 73 | 25 | 363 | 64.2 | 136.0 | ||||
| QB 30-580 | 30 | 22 | 10 | 145 | 40 | 580 | 94.2 | 199.6 | N/A | 1157 |
| QB 40-580 | 40 | 30 | 10 | 145 | 40 | 580 | 124.8 | 264.4 | N/A | 1268 |
Product Warranty
All Quincy Compressor QB products come with a standard one-year warranty.
Invest in Powerful and Dependable Air Compressors at Quincy Compressor
For reciprocating piston air compressors you can rely on in the toughest conditions, choose Quincy Compressor. Established in 1920, we’ve upheld our legacy of innovation for over a century.
Find your local Quincy distributor to inquire about the Quincy QB today.
