Custom Engineered Packages
Custom Engineered Packages
By utilizing the latest technology, our compressed air systems deliver energy-efficient solutions with low life-cycle costs and are designed according to customer specifications.
Our custom-engineered air compressor packages are meticulously built and shipped with all necessary components, ensuring they are ready for immediate operation. Designed for flexibility and seamless integration into any process, our air compressors utilize the latest technology to deliver energy-efficient solutions with low life-cycle costs. Our custom packages deliver high reliability, meet quality standards, and reduce production costs.
Plug & Play Custom Air Systems
Our complete air compression systems are ready for use, including air treatment equipment, nitrogen generators, boosters, tanks, controllers, and ancillary equipment. These systems can be mounted on a compact skid, housed in a shelter, or installed directly at your facility as per your requirements.
Reciprocating Packages
- Crankcase heater for low ambient
- Motor approvals (Explosion proof, ABS, IEEE)
- Motor temperature sensors (Thermistor, RTD, or thermocouples)
- Special voltages
- Special drive groups for pressure, CFM, and HP requirements
- Stainless electrical enclosure (NEMA 4X)
- Stainless control tubing and fittings
- Upgraded tank size
- Special tank coating (internal and external)
- Special approvals (ABS, LLoyds, USG)
- Custom control wiring for remote contacts
- Higher SCCR rating for control panel
- Heresite coated cooler
- Export crating
Rotary Packages
- Motor approvals (Explosion proof, ABS, IEEE)
- Motor temperature sensors (Thermistor, RTD, or thermocouples)
- Special voltages (medium voltage available for QSI 250-400 only)
- Stainless electrical enclosure (NEMA 4X)Stainless canopy
- Stainless control tubing and fitting
- Stainless water piping
- Special sump tank approvals (ABS, LLoyds, USG)
- Mounted disconnect
- Rig & Rental base
- Remote starter
- Custom control wiring for remote contacts
- Heresite coated cooler
- Sea water coolers
- Oversized cooling system (Not available on all units)
- Air/water connection flange
- Water shut off solenoid
- Zero loose drain
- Export crating

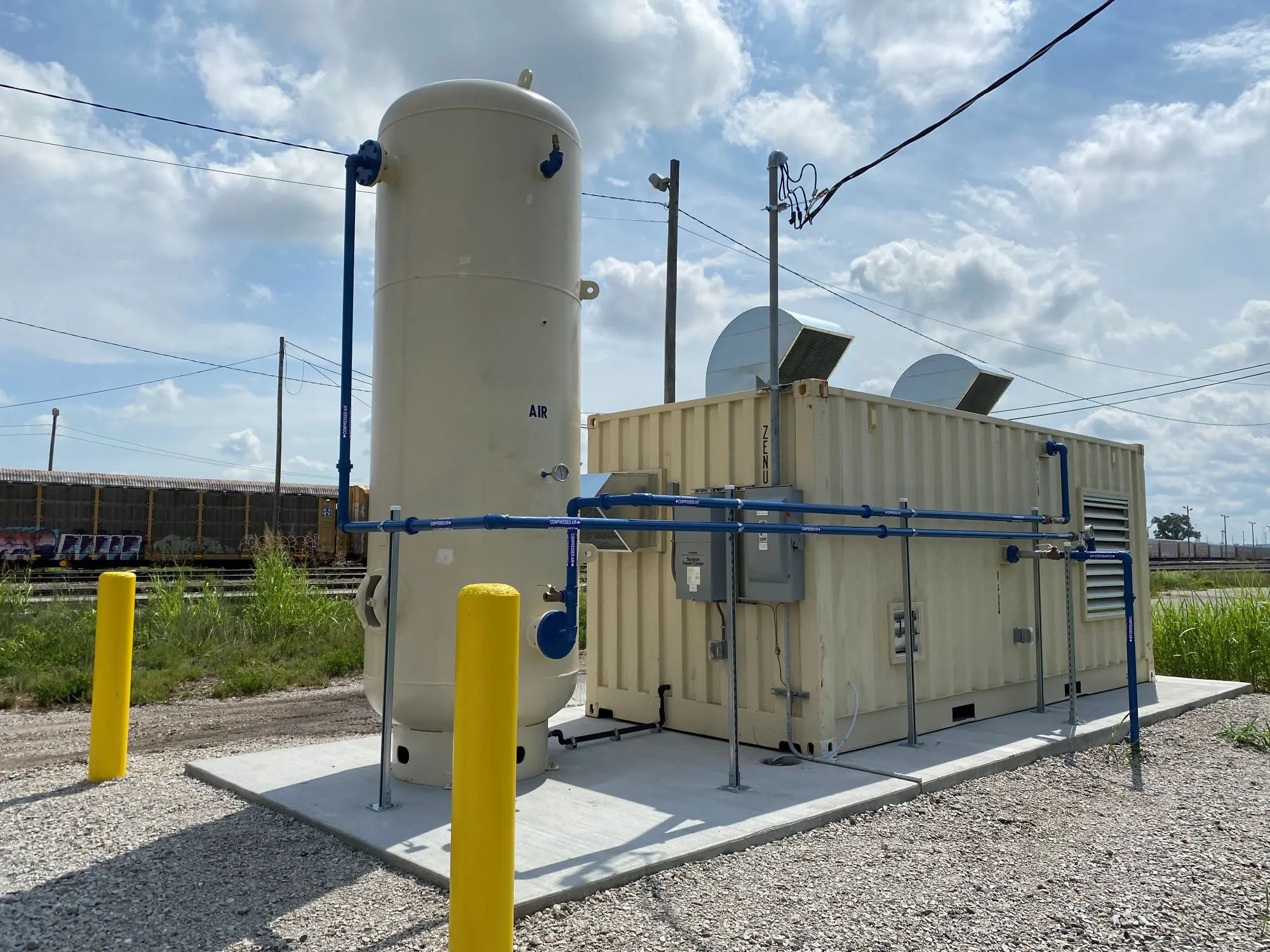

Container and Skid package options (Reciprocating and Rotary)
- Container Size (10, 20, or 40)
- Container Height (standard or high cube)
- Dryer (refrigerated, desiccant, or heated desiccant)
- Gas Generation (O2 or N2)
- Wet Tank (depending on application may ship loose)
- Dry Tank (depending on application may ship loose)
- Oil/Water Separator
- 3 Valve Bypass (optional for all secondary equipment)

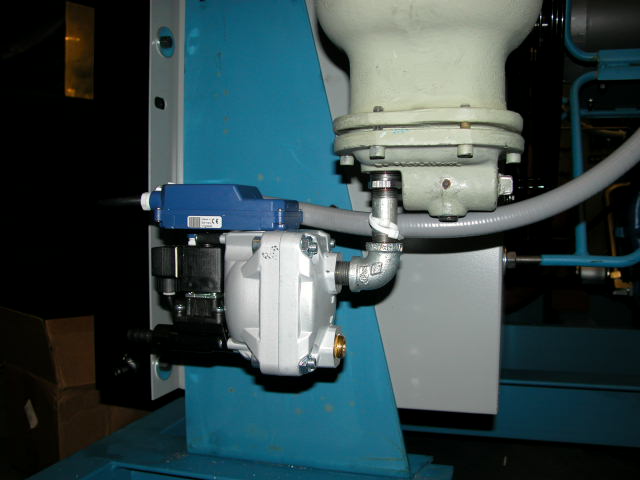

- Drain (Zero loss or timer)
- HVAC
- Heater
- Re-Usable inlet filter
- Sound/Insulated Interior
- No-Slip Floor Coating
- Interior Lighting (motion detector or switch)
- Interior Receptacles
- Conduit (ridged or EMT)
- Exterior Receptacles
- Pedestrian Door
- Exterior Paint (standard or custom color)
- Anchoring pads
- As Built GAD/P&ID
And so much more. Contact us today to design your next custom project!
