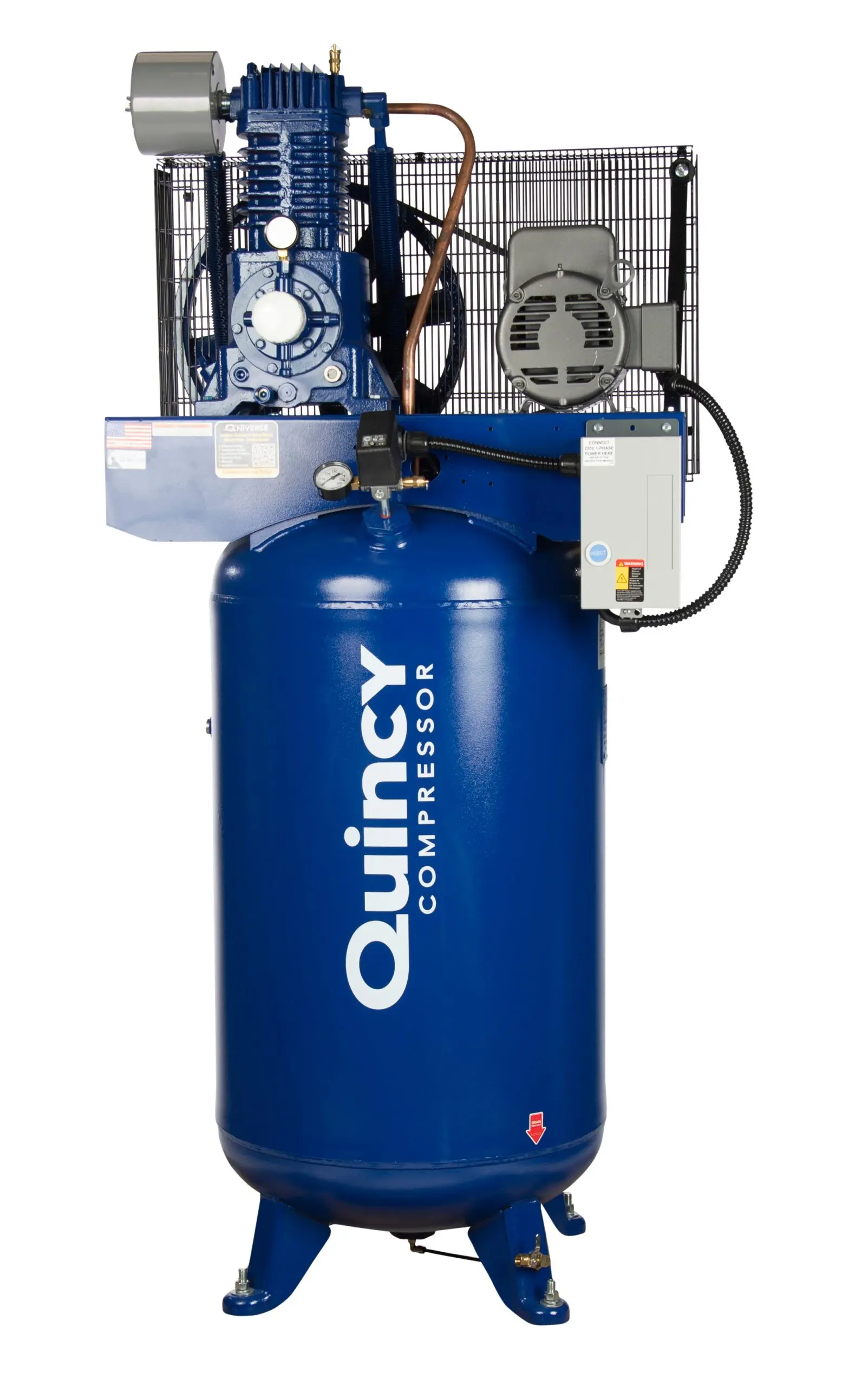

QP 5-15 hp Industrial Duty Compressors

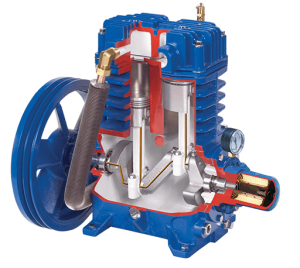

The Quincy QP series is designed for tougher 175 PSI applications where traditional splash lubrication just won’t measure up. The QP is a heavy-duty, cast-iron compressor that features an oil pump for pressure lubrication to the crankshaft, bearings and connecting rod up to the wrist pins. This advanced pressure lubricated system allows for a smoother, more continuous operation. Coupled with an attractive price, the QP balances cost-effectiveness with longer life to maximize your investment.
At a Glance
- Fully pressure lubricated
- Cast-iron crankcase, cylinder and flywheel
- High efficiency intercooler
- Positive displacement oil pump

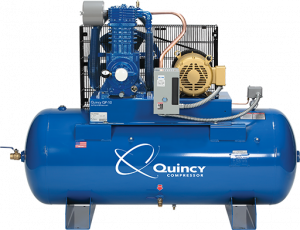

Pro Unit
“Standard” configuration Units
- Ball Valve Tank Drain
- Shorter Lead Time-Stock Units
- Extended Warranty Available
- Two-Year Package and
Three-Year Pump vs. One-Year on configured units
- Two-Year Package and
- Easier to Order – Preassigned Part Numbers
“Standard” configuration Units
Pro+ Unit
- “Professional” Units
- Electronic Drain
- Low Oil Protection
- Shorter Lead Time Stock Units
- Extended Warranty Available
- Two-Year Package and Three-Year Pump vs. One-Year on configured units
- Easier to Order – Preassigned Part Numbers
Up Close
- 5-15 hp, 175 psig maximum
- Two Stage
- Oil filter and pressure gauge
- Automotive style inlet filter/silencer

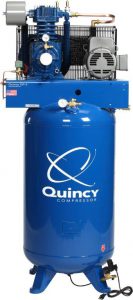

Max Unit
- “Fully Loaded” Units
- Air Cooled After Cooler
- Electronic Drain
- Low Oil Protection
- Vibration Isolators (Horizontal units only)
- Extended Warranty Available
- Two-Year Package and Three-Year Pump vs. One-Year on configured units
- Easier to Order – Preassigned Part Numbers
Quincy QP Key Features
A piston-driven reciprocating air compressor operates via positive displacement. The piston forces air into a cylinder and compresses it into a storage tank.
The Quincy QP Series consists of reciprocating compressors that can handle your most challenging compressed air applications. Choose from three versions – the standard configuration Pro Unit, the professional level Pro+ Unit, and the “fully-loaded” Max Unit.
Examples of the numerous Quincy QP features include:
- Lubricated two-stage compressor.
- High-performance positive displacement oil pump.
- Two-piece aluminum connecting rods.
- Inter-cooler unit featuring fin and tube construction.
- Automotive-style filter.
- Electric models include a pressure switch.
- Single-source duplex control panels (duplex units only).
- Manual ball valve tank drain.
- Enclosed belt guard complies with OSHA standards.
- CSA and UL compliant electrical components.
Reciprocating air compressors can add value for applications in many industries, including automotive, manufacturing, mining, energy exploration and food and beverage. They perform well in situations requiring an intermittent source of compressed air.
Rugged Industrial Air Compressors Delivering Reliable Performance
Like all Quincy Compressor products, the QP reciprocating compressors feature durable construction to ensure dependable service in any operating environment. They’re built in the USA to the highest standards for quality and performance. You’ll experience maximum uptime that contributes to increased productivity in your manufacturing or industrial facility.
The advanced valve design provides the highest volumetric efficiency in the industry. A highly effective cooling system delivers a powerful airflow across the cylinder, ensuring smooth operation. Industrial-class-bearings give the compressor a longer operating life and reduce the likelihood of mechanical failures.

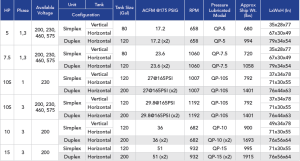

Quincy QP Model Technical Specs
| HP | Phase | Available Voltage | Configuration | Tank size (Gal) | ACFM @175 PSIG | RPM | Pressure Lubricated Model | Aprox Ship Wt. (lbs) | LxWxH (in) | |
| Unit | Tank | |||||||||
| 5 | 1, 3 | 200, 230, 460, 575 | Simplex | Vertical | 80 | 17.2 | 658 | QP-5 | 680 | 35x28x77 |
| Horizontal | 67x30x49 | |||||||||
| Duplex | Horizontal | 120 | 17.2 (x2) | 658 | QP-5 | 994 | 79x30x54 | |||
| 7.5 | 1, 3 | 200, 230, 460, 575 | Simplex | Vertical | 80 | 23.6 | 1060 | QP-7.5 | 720 | 35x28x77 |
| Horizontal | 67x30x49 | |||||||||
| Duplex | Horizontal | 120 | 23.6 (x2) | 1060 | QP-7.5 | 1058 | 79x34x54 | |||
| 10S | 1 | 230 | Simplex | Vertical | 120 | 27@ 165PSI | 1007 | QP-10S | 792 | 37x34x78 |
| Horizontal | 71x30x55 | |||||||||
| Duplex | Horizontal | 200 | 27@165PSI (x2) | 1007 | QP-10S | 1401 | 76x44x63 | |||
| 10S | 3 | 200, 230, 460, 575 | Simplex | Vertical | 120 | 29.8@165PSI | 1192 | QP-10S | 792 | 37x34x78 |
| Horizontal | 71x30x55 | |||||||||
| Duplex | Horizontal | 200 | 29.8@165PSI (x2) | 1192 | QP-10S | 1401 | 76x44x63 | |||
| 10 | 3 | 200 | Simplex | Vertical | 120 | 36 | 682 | QP-10 | 900 | 49x34x78 |
| Horizontal | 71x30x55 | |||||||||
| Duplex | Horizontal | 200 | 36 (x2) | 682 | QP-10 (x2) | 1693 | 76x56x64 | |||
| 15 | 3 | 200 | Simplex | Horizontal | 120 | 51 | 932 | QP-15 | 995 | 71x30x55 |
| Duplex | Horizontal | 200 | 51 (x2) | 932 | QP-15 (x2) | 1915 | 76x56x64 | |||
Maintain Your Reciprocating Air Compressor With Quincy Compressor’s Genuine Parts and Lubricants
Reciprocating compressors work hard in demanding operating conditions. Regular maintenance is crucial to keep them running at full strength and prevent unexpected breakdowns.
Important maintenance steps you should implement to protect your compressor and prevent damage include keeping the unit clean and minimizing vibrations that can cause components to loosen. Avoid running the air compressor at high temperatures for extended periods.
When it’s time to replace worn or damaged parts and change the oil and other vital fluids, use only genuine Quincy Compressor products to ensure the best long-term performance.
Warranty Coverage to Protect Your Reciprocating Air Compressor Investment
Do you want extra peace of mind knowing you have protection if something happens to your air compressor? At Quincy Compressor, we take pride in offering the best product warranties in our industry.
The Pro and Max reciprocating piston models come with our “No Bull” extended warranty option. By purchasing this coverage, you will double the package protection to two years and the pump to three years. It also covers all your maintenance needs for three years. You’ll save up to 15% on the cost of buying the individual pieces.
Learn More About Our Quincy QP Series Today
The Quincy Compressor distributor in your area can supply your business with a QP reciprocating compressor and help with your maintenance and repair needs. You’ll receive the prompt, attentive service you deserve.
Find a distributor near you today and get a no-obligation quote.
