QGSV 5-60 HP Direct Drive Compressor
If you’re looking for a highly efficient 5-60 hp compressor, the Quincy QGSV can meet your needs. Featuring the most advanced rotary screw air compressor technology, the QGSV serves as a reliable source of compressed air for a wide range of industrial applications. The QGSV is equipped with a specially designed drive that controls and adjusts the operating speed. This offers a number of benefits, including delivering more constant pressure, protecting against power surges, lowering energy consumption, and will have a positive impact on your company’s bottom line.
At a Glance
- Standard quiet enclosure
- Airlogic 2 Advanced control
- NEMA Premium TEFC Motor is standard
- Ease of serviceability
- Integrated dryer option
Up Close
- 41 -263 acfm @100 psig
- True Blue 5-Year Warranty with start up
- Network up to 6 machines
- 20-100% turndown capacity
- 8,000 hour premium synthetic fluid
Quincy QGSV Key Features
If you’re like many business owners, you’re looking for reliable compressed air equipment that delivers maximum efficiency and reduces your company’s operating costs. The QGSV Series from Quincy Compressor will meet your expectations.
These technologically advanced direct-drive compressors can automatically control and adjust the machine’s operating speed to match the application’s requirements, delivering more consistent pressure and minimizing energy consumption.
Examples of the many valuable QGSV features and benefits include:
- 10-60 hp capacity to meet a wide range of power requirements.
- Powerful, efficient TEFC motor.
- Quiet enclosure that limits noise output to as low as 64 dBA.
- Flexible Airlogic2 Controller options for simplified monitoring and control.
- Remote control and connectivity for a more flexible operating process.
- Expansive turndown capacity range of 20%-100%.
- Direct-drive transmission that reduces energy consumption and minimizes maintenance requirements.
- 120-gallon horizontal air receiver and integrated dew point refrigerated air dryer as options.
The QGSV rotary screw compressors are well-suited for partial-load operating environments and when maximum efficiency is essential. They also perform well in highly sensitive applications in normal operating conditions.
Reliable Performance to Maximize Uptime
The QGSV Series consists of highly engineered critical components designed to deliver a long life span and reduce the risk of mechanical breakdowns. The well-constructed airend provides a 100% continuous duty cycle and minimizes vibrations. There’s also a low-consumption fan equipped with a wide heat exchange surface, improving efficiency and contributing to a longer compressor life span.
QGSV Technical Specs
| Model No. | HP | PSI | ACFM | Length | Width | Height | Weight lbs. | DBA |
| QGSV-5 | 5 | 145 | 17.8 | 56 | 24 | 51 | 386/441 | 60 |
| QGSV-7.5 | 7.5 | 145 | 26.78 | 56 | 24 | 51 | 408/463 | 62 |
| QGSV-10S | 10 | 145 | 34.1 | 56 | 24 | 51 | 430/496 | 63 |

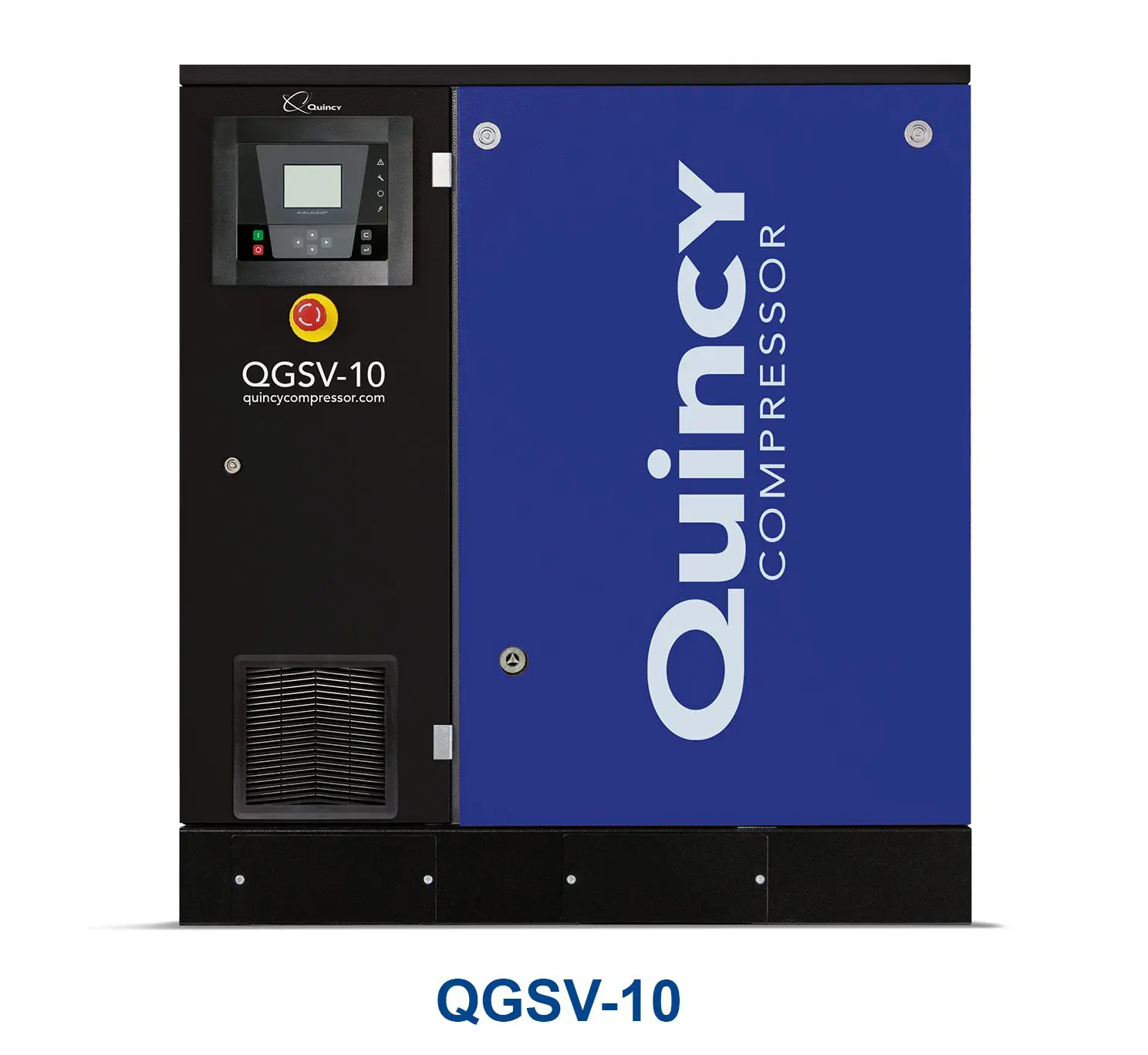

| QGSV-10 | 10 | 100 | 41.4 | 76.2 | 25.8 | 66.1 | 884/985 | 64 |
| QGSV-15 | 15 | 100 | 65.1 | 76.2 | 25.8 | 66.1 | 920/1025 | 64 |
| QGSV-20S | 20 | 100 | 78.7 | 76.2 | 25.8 | 66.1 | 926/1065 | 65 |

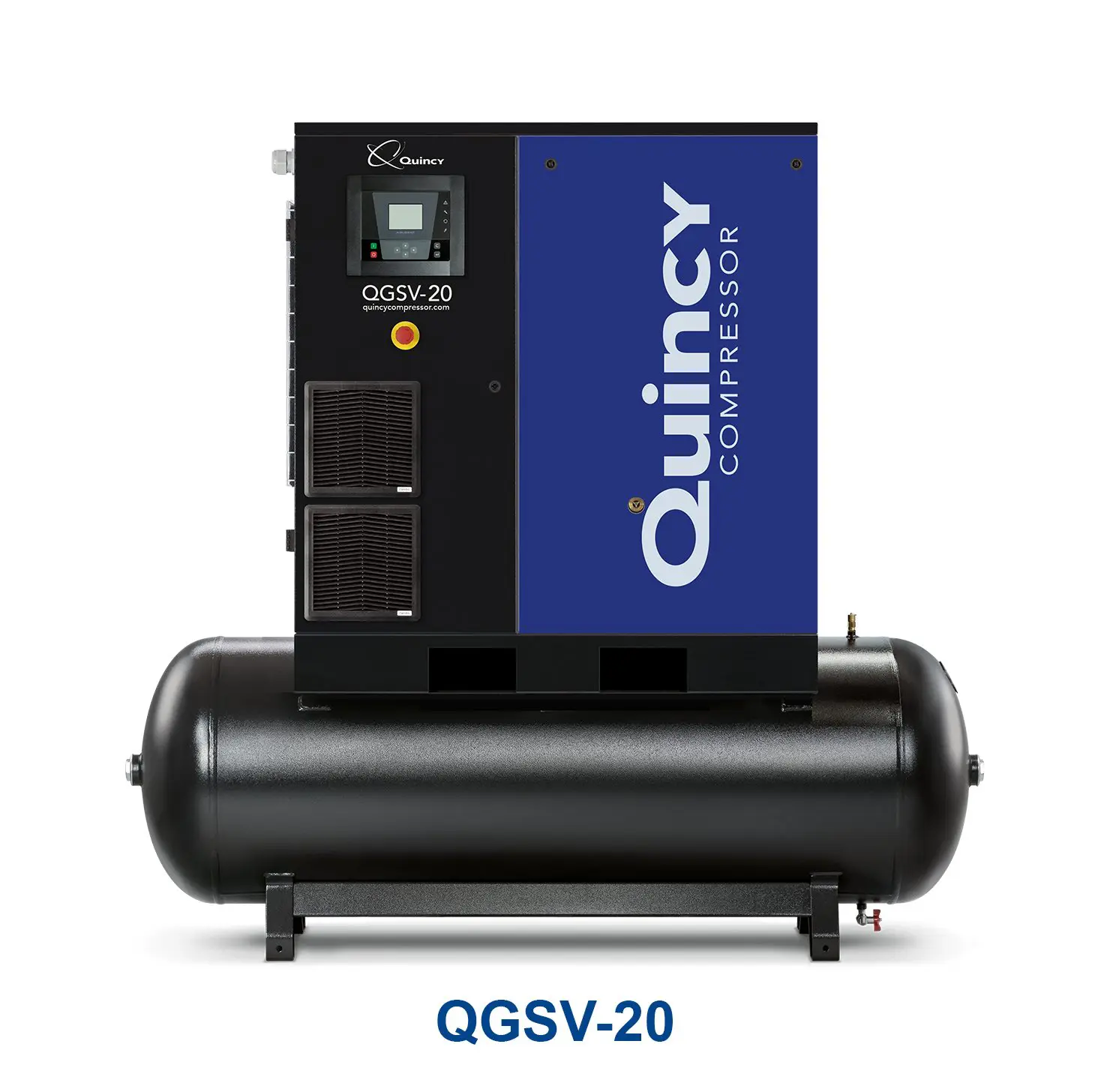

| QGSV-20 | 20 | 100 | 101.6 | 76.4 | 32.9 | 72.2 | 1113/1224 | 68 |
| QGSV-25 | 25 | 100 | 125.1 | 76.4 | 32.9 | 72.2 | 1169/1290 | 70 |
| QGSV-30 | 30 | 100 | 139.9 | 76.4 | 32.9 | 72.2 | 1201/1323 | 71 |

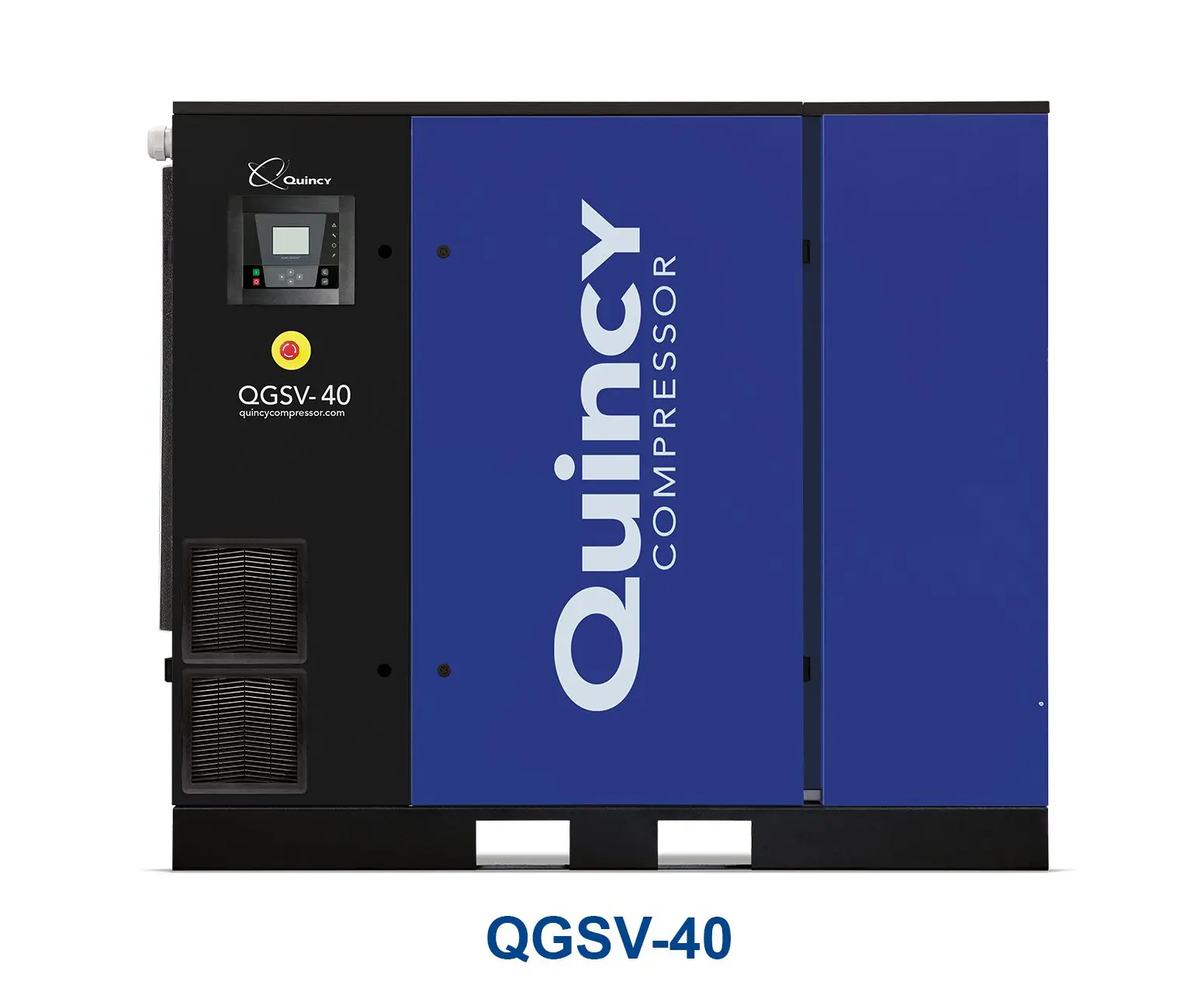

| QGSV-40 | 40 | 100 | 193.6 | 52/71.3 | 32.7 | 61.2 | 1085/1338 | 70 |
| QGSV-50 | 50 | 100 | 220.8 | 52/71.3 | 32.7 | 61.2 | 1133/1387 | 71 |
| QGSV-60 | 60 | 100 | 263.8 | 52.4/71.4 | 32.6 | 61.2 | 1446/1706 | 74 |
Maintain the QGSV With Quincy Compressor’s Genuine Parts and Lubricants
The simple design of these direct-drive compressors makes them easy to service. The hinged doors and detachable panels provide direct access to the machine’s internal components, eliminating maintenance hassles. You can also monitor fluid levels from the outside, saving valuable time.
We can supply all the parts and fluids you’ll need to keep your compressor on the job and maximize its life span. Our fluids provide excellent friction protection, preventing the premature wear of vital components. Replacement parts are available via our extensive distributor network, which can also deliver prompt repair and maintenance service whenever you need it.
Protect Your QGSV Investment With Warranty Coverage
Quincy Compressor has been designing and manufacturing high-quality, long-lasting compressed air equipment since 1920. We support our products with industry-best warranties for extra protection and peace of mind.
Our QGSV rotary screw compressors come with our True Blue warranty that covers your machine for the first five years following an authorized startup. This customer-focused warranty encompasses multiple vital components, including the airend, drive motor, separator tanks and heat exchanger.
The True Blue warranty is free and does not require a long-term service contract commitment. You’re eligible when you register your new compressor, monitor the fluid levels and use genuine Quincy Compressor replacement parts.
Contact Us for More QGSV Product and Pricing Information
Take your company’s compressed air performance to a higher level and reduce your operating costs. Contact the Quincy Compressor distributor in your area for additional information about the QGSV Series and request a no-obligation quote today.
