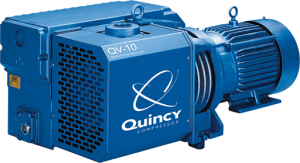

QV – Rotary Vane Vacuum Pump

The Quincy QV product line features six oil flooded rotary vane pumps ranging from 1.2 hp to 10 hp. The QV pumps are self-contained, including inlet non-return valve, pumping chamber, oil mist separation, and an oil cooling/recirculating system. Optimized for flowrate performance, oil separation and temperature stability, these pumps can operate continuously at any vacuum level.

Locate a Distributor

At a Glance

  • Non-metallic vanes = long life
  • 6 models available
  • Multistage separation system
  • Ideal OEM replacement pump

Up Close

  • 1.25-10 hp, 17-200 acfm
  • Air cooled
  • Integral inlet check valve
  • Inlet screen/filter
Download Brochure

QV Vacuum Pump Key Features

Quincy QV rotary vane vacuum pumps have a simple yet effective principle of operation. This makes them an excellent choice for customers interested in reliable vacuum without overly sophisticated mechanics or control systems. The QV rotary vane series contains 6 different all-purpose models with varying horsepower capable of handling a broad range of demands.

These versatile pumps are used in many applications. Used often as point-of-use pumps for plastics thermoforming, food packaging, woodworking hold-down, and more. Quincy QV Pumps can also be combined into systems to provide greater flow, redundancy, and a more “plug-and-play” solution.

Primary features include:

  • An integrated non-return valve helps prevent backflow.
  • A cast-iron, precision-machined rotor with non-metallic vanes promotes minimal wear and extended machine life.
  • A heavy-duty flange-mounted motor ensures proper alignment with no belts
  • Oil return mechanisms allowing for optimum ultimate vacuum
  • Oil cooling circuits using only air. No water requirements.

QV Pump Performance

Quincy QV rotary vane vacuum pumps have relatively flat performance curves.  This ensures they provide consistent volumetric capacity to meet the needs of the most demanding operations.

The pitch of the vanes, size of the separation chamber, and sealing of the surfaces have all been optimized to ensure stable temperatures throughout the vacuum range.  This allows the pumps to be operated continuously with no pressure limitations.

Quincy QV Series – Technical Specifications

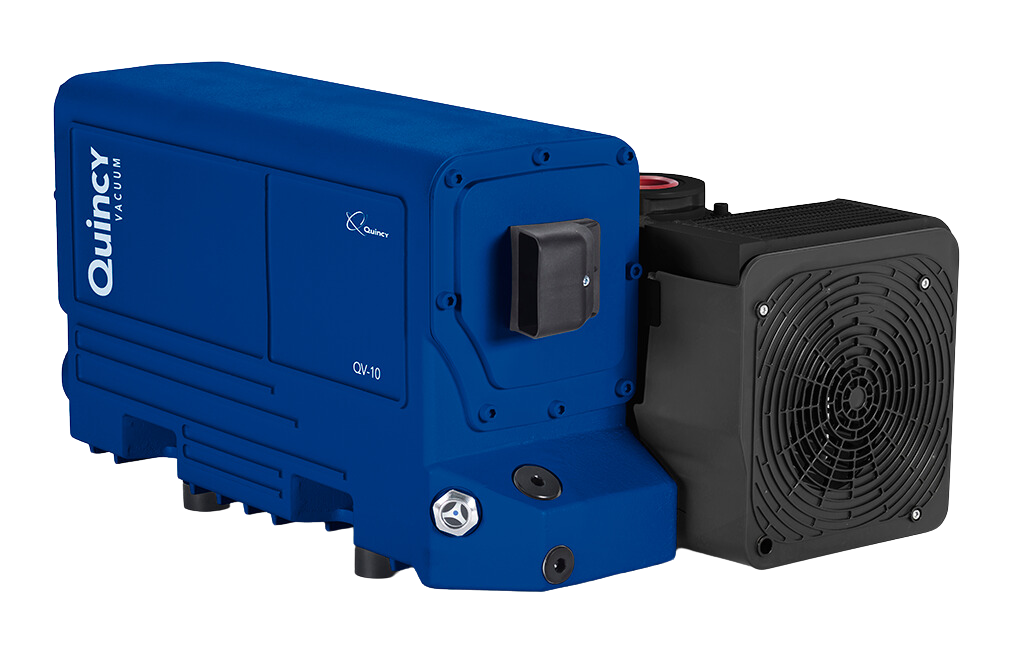

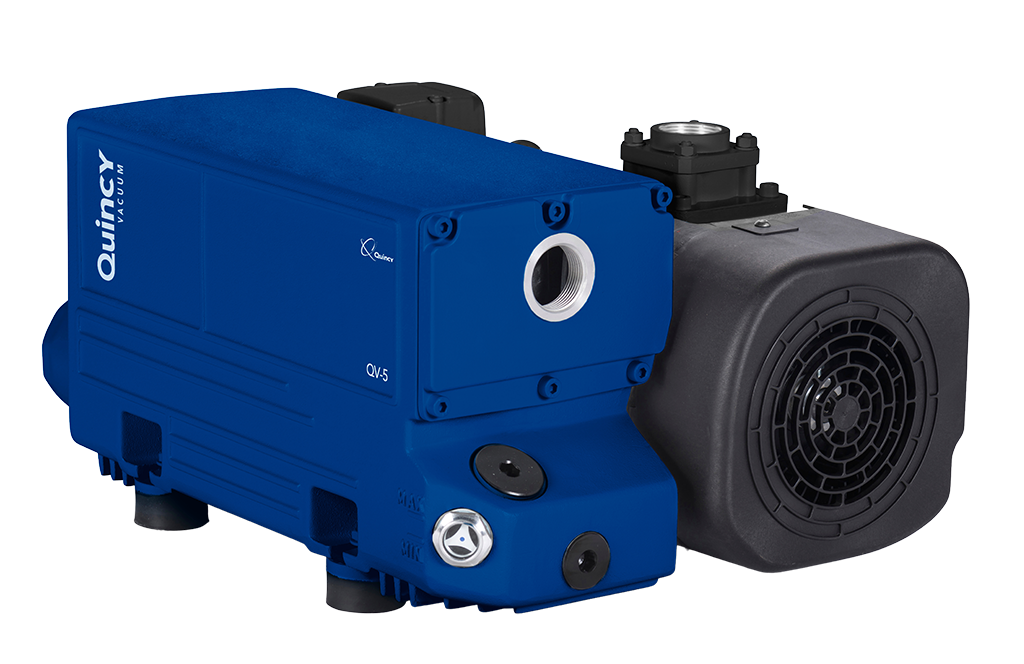

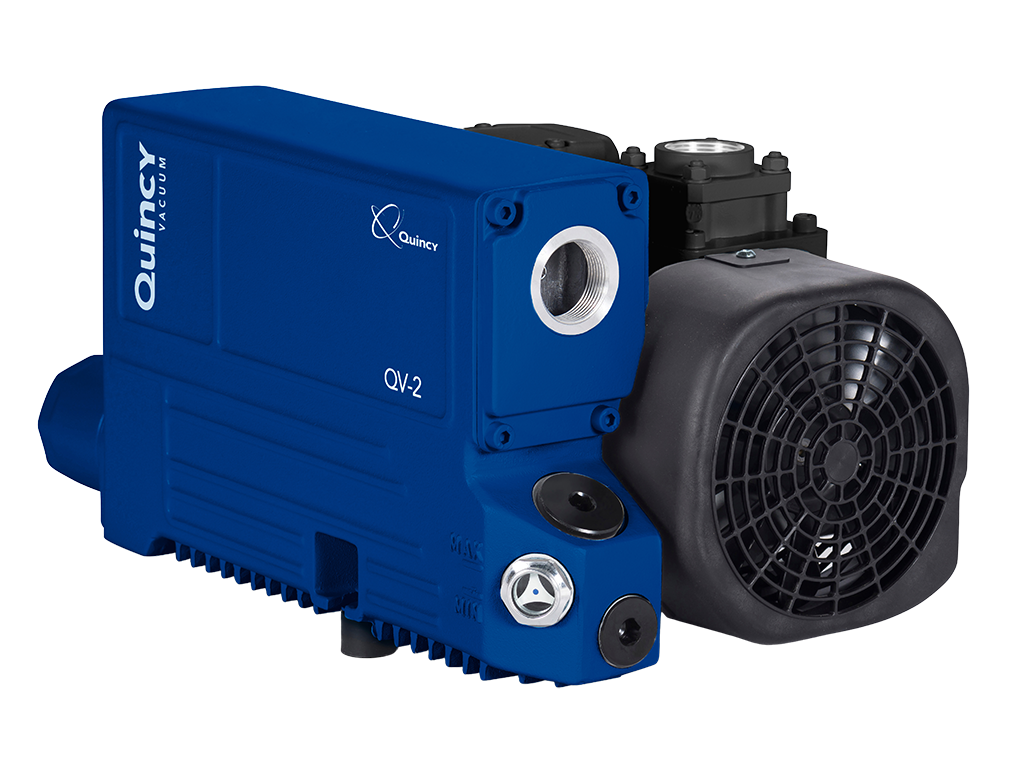

Model QV-01 QV-02 QV-03 QV-05 QV-07 QV-10
Nominal Volumetric Flowrate (ACFM) 18 31.2 42 68.9 140 200
Ultimate Vacuum (“HgV) 29.9 29.9 29.9 29.9 29.9 29.9
Installed Horsepower 1.2 1.7 2.4 4.8 7.4 8.8
Nominal Pump RPM 1800 1800 1800 1800 1800 1800
Inlet Connection (NPT) ½” 1-¼” 1-¼” 1-¼” 2” 2”
Discharge Connection (NPT) ½” 1-¼” 1-¼” 1-¼” 2” 2”
Dimensions (LxWxH) 17.3 x 10.5 x 9.8 21 x 11.2 x 10.4 22.8 x 12.6 x 10.4 30.1 x 15.7 x 10.7 38.0 x 23.0 x 16.0 42.9 x 21.8 x 17.7
Weight (lbs) 60.7 88.2 106 203 397 476
Lubricant Capacity (qts) 2.1 1.05 2.1 2.1 7.9 9 – 12.2
Noise Level (dBa) 59 60 64 64 73 76

Maintenane for QV Vacuum Pumps

The mechanical simplicity of the rotary vane pump means it’s a great technology for those maintenance DIYers. Routine oil changes, including oil filter and oil separator elements, will ensure product longevity and minimal downtime. The non-metallic vanes and other seals have been designed to operate in the harshest conditions. Consider extending routine maintenance intervals by using full synthetic vacuum vane oils.

Prefer contracting the service? Contact your local Quincy Sales Office or Distributor for maintenance agreements.

Warranty Coverage to Protect Your Vacuum Pump Investment

At Quincy Compressor, we have been engineering and manufacturing the longest-lasting, highest-quality vacuum pumps and compressed air equipment for over a century.

Our QV series vacuum pumps come with a one-year standard warranty, giving you extra assurance that your system will perform in peak condition and deliver long-lasting results. Your Quincy Compressor distributor can discuss extended warranty options based on your specific model.

Contact Us to Learn More About the Many Quincy QV Benefits

Contact Quincy Compressor or the authorized Quincy distributor in your local area for more information about the QV 1.5-10 hp vacuum pump line.

Learn more about industrial grade vacuum pumps.

Learn more about rotary vane vacuum pumps and rotary vane vacuum pump parts.
